System Configuration / Connection Example
Some examples of connections between our products and combinations with our other products are introduced here. The connection methods introduced here are only examples, and our robot functional parts can be connected freely by combining relay boxes and other components.
Connections Using RSC-U485

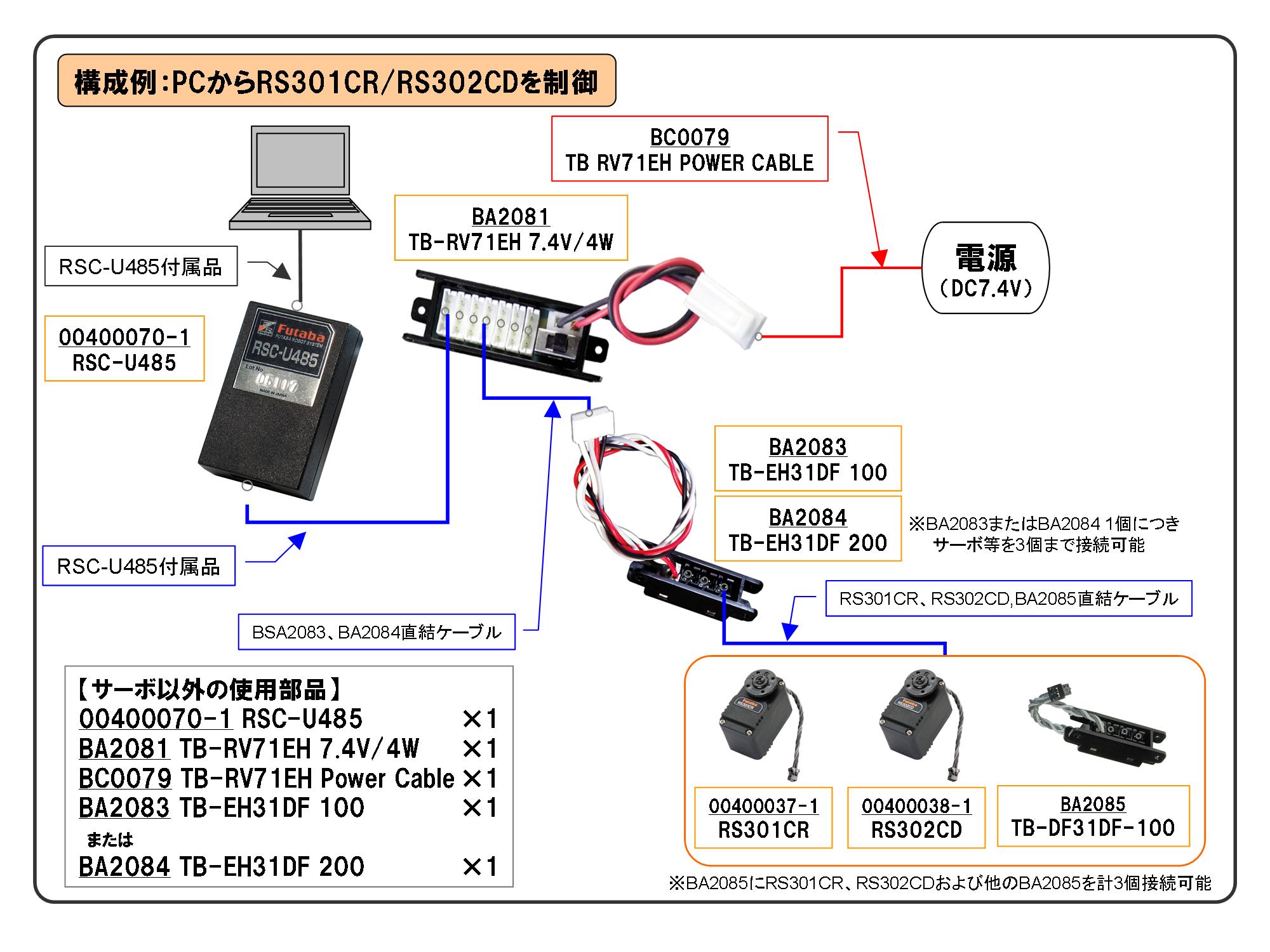

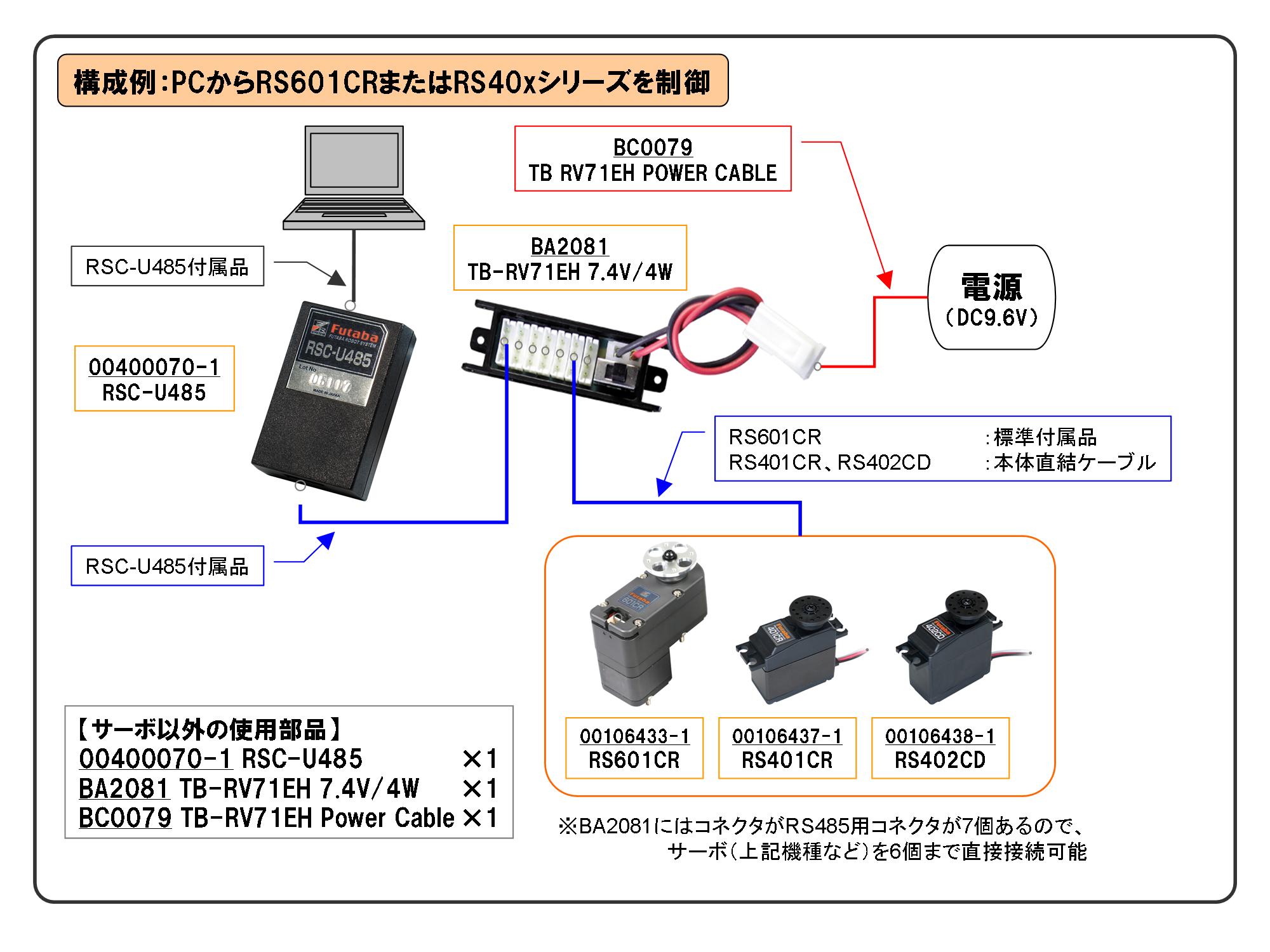

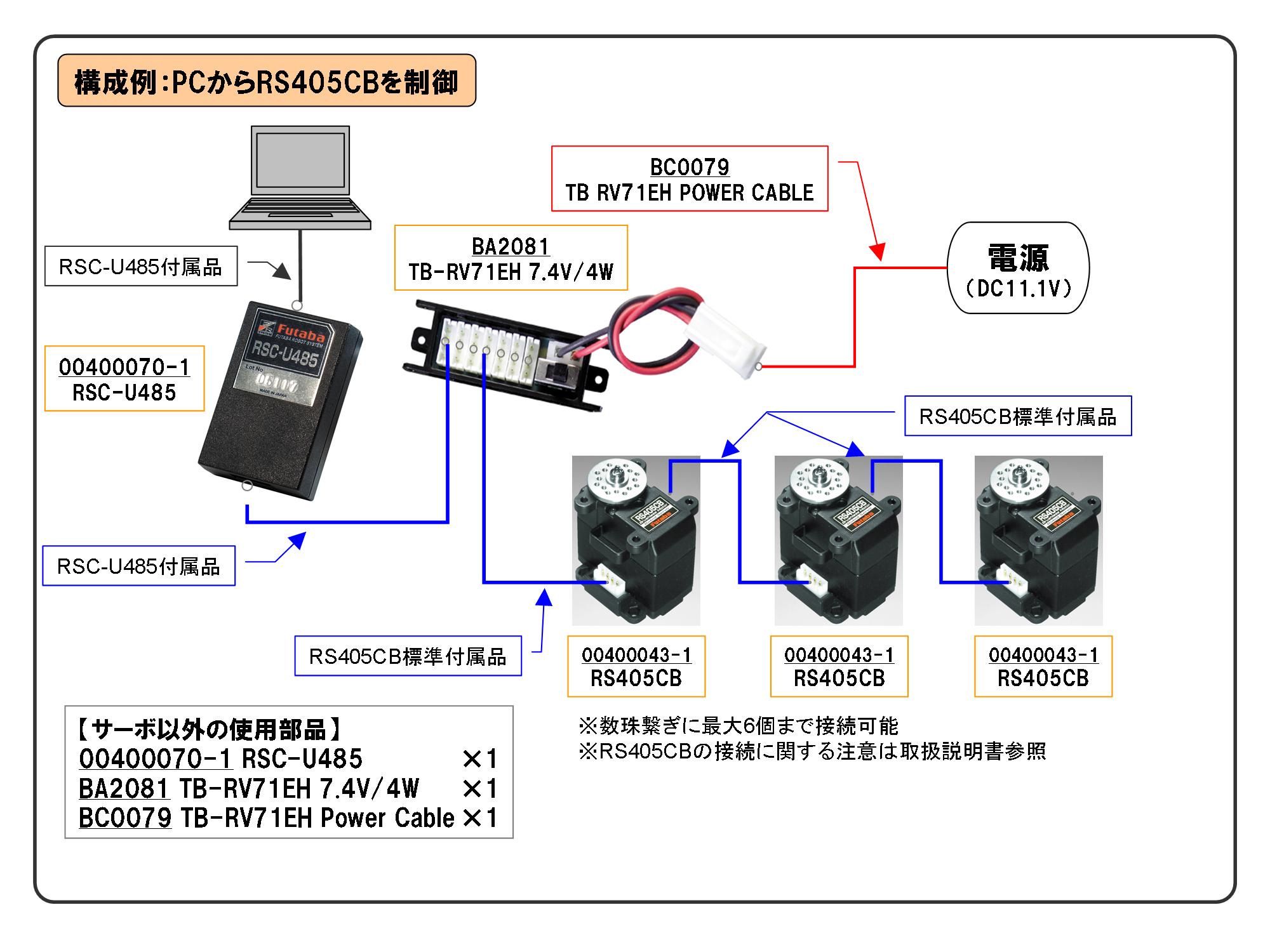

Connections for rs485 Command-Controlled Servos

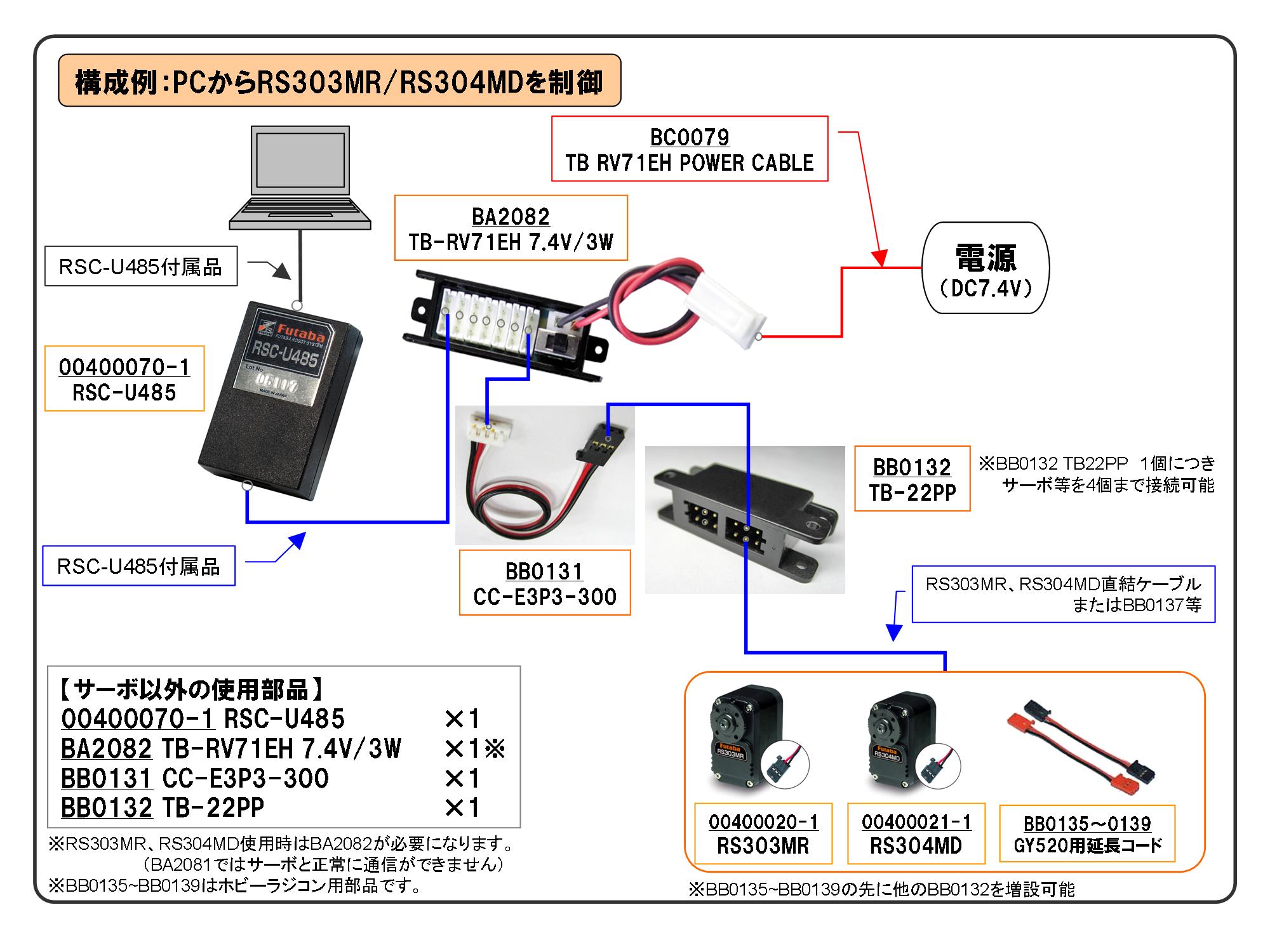

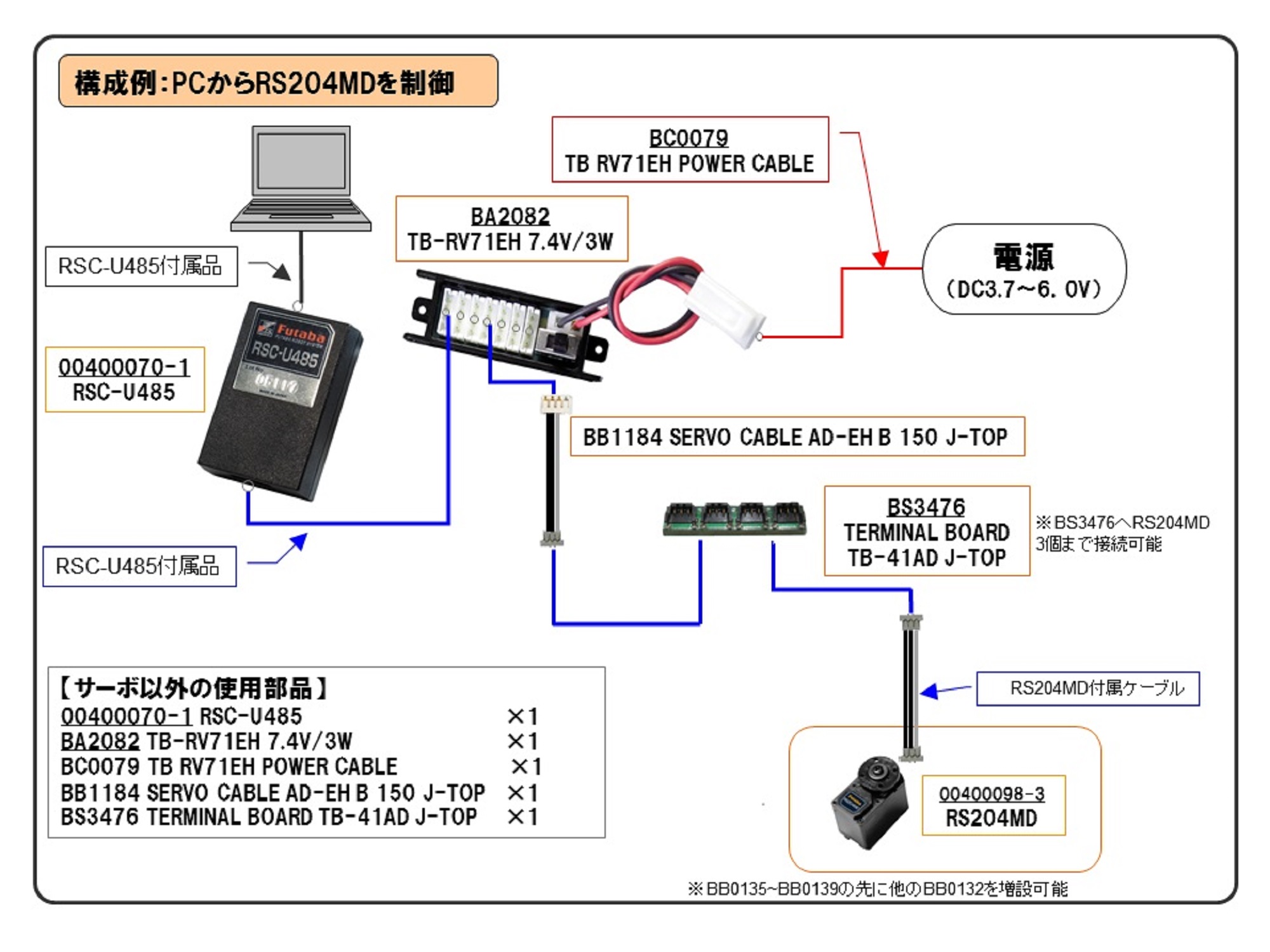

Connections for TTL Command-Controlled Servos
Connection Using the RPU-10
When using the RPU-10, the connection configuration is the same as when using the RSC-U485; the only difference is that the RSC-U485 is replaced by the RPU-10.
The PC and the RPU-10 are connected using the RS-232C connection cable supplied with the RPU-10.
If your PC does not have an RS-232C port, please use a commercially available USB-to-RS-232C adapter.
Please note that some USB-to-RS-232C adapters may not be compatible. For details, please contact the manufacturer of the respective product.
